IND non Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.
IND non Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

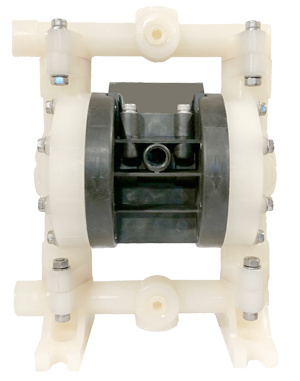

IN06 Plastic
IN06 Plastic
Specifications
Port Size
1/4" / 3/8" NPT/BSP
Capacity
0 to 7.13 gpm (27 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .0.063" (1.6 mm)
Heads Up To
100 psi . of water (7.0 bar or 70 meters)
Max Operating Pressure
125 psi (8.4 bar)
Shipping Weight
Polypropylene: 4.4 lbs. (2 kg)
PVDF: 5.4 lbs. (2.45 kg)
Specifications
Port Size
1/4" / 3/8" NPT/BSP
Capacity
0 to 7.13 gpm (27 lpm)
Air Distribution Valve
No-lube, no-stall design
Solids-Handling
Up to .0.063" (1.6 mm)
Heads Up To
100 psi . of water (7.0 bar or 70 meters)
Max Operating Pressure
125 psi (8.4 bar)
Shipping Weight
Polypropylene: 4.4 lbs. (2 kg)
PVDF: 5.4 lbs. (2.45 kg)
